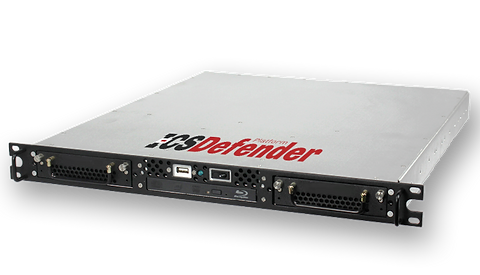

Front view

Hardware  Specification

  • 1 x XEON CPU E5-2608L V3 2.0GHZ 6-CORE 6.4GT/S QPI, 1866MH DDR4,15MB,LGA2011 R3,52W,INTEL

  • 2 x 8GB DDR4REG ECC RDIMM,2400MHZ

  • 2 x 256GB 2.5 IN 7MM, AES-256 SSD SATA

  • 1 option slot for PCI-E X16 card

Enviroment

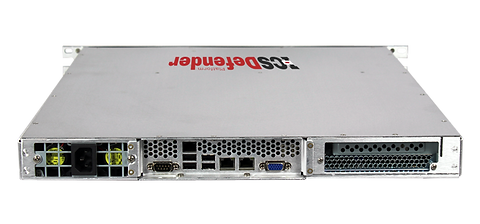

Back view

  • MIL-STD-810, Operational Temperature, Method 501, Procedure I/II: -10°C to +50°C,
    -40°C operational with SSD, capable of -40°C to +71°C with select processors
    MIL-STD-810, Storage, Method 501, Procedure I/II: -30°C to +75°C
    MIL-STD-810, Humidity, Method 507, Procedure II: 240 hours with humidity kit
    MIL-STD-810, Altitude, Method 500: 10,000ft operation, 20,000ft transport
    MIL-STD-810, Vibration, Method 514, Procedure I: 1.5 GRMS, 5-2,000Hz, 75 min/axis
    MIL-STD-810, Shock, Method 516, Procedures I/V: 20g, 11msec; 3 axes, each
    direction

Electromagnetic Compatibility standards

Mechanical 1U

  • Height: 1.75” (4.45 cm)

  • Width: 16.93” (44.45 cm) EIA-310 Rack Compliant

  • Depth: 20” (50.8 cm)

  • Weight: 14.8 - 18.6 lbs. (6.7 - 8.4 kg)

  • AC, FCC Compliant

  • AC, MIL-STD-461, RE102, CE102 compliant

  • DC, MIL-STD-461, RE102, CE102 compliant

  • RTCA DO-160 Section 21, Category M

Optional Expansion Card

4 port 10Gp SFP+ ports

HSM Card

8 to 32 port RS232/422

4 port 1Gb Ethernet
